Description
Internal SSD

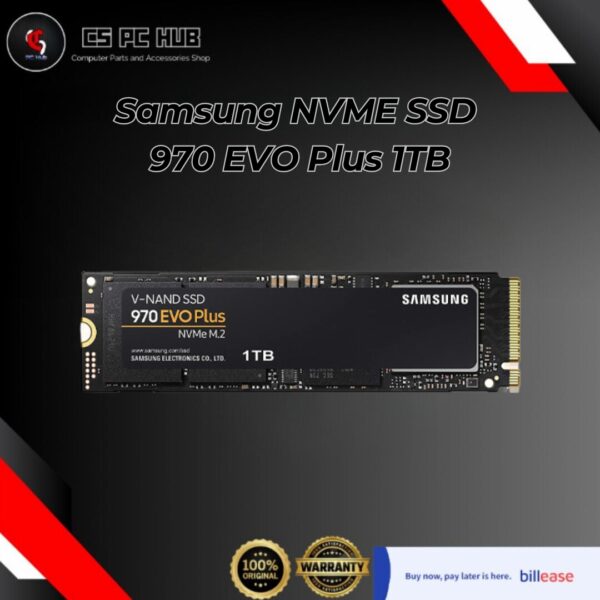

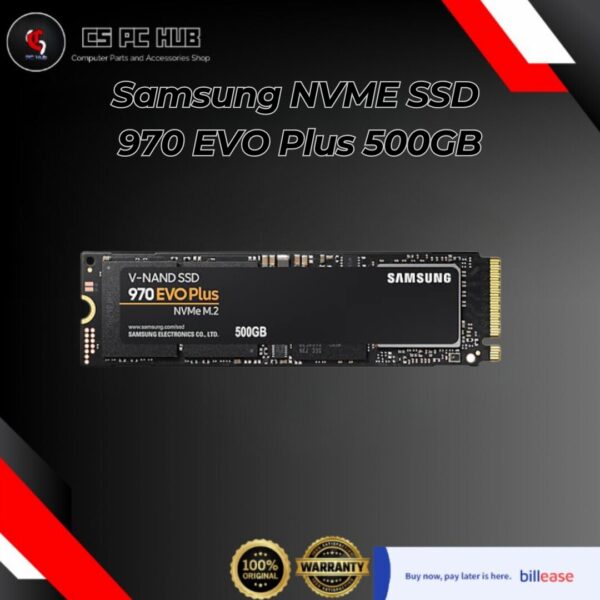

970 EVO Plus
Where to buy
Unreal performance,
realized
Illustrative image of 970 EVO Plus with SAMSUNG DRAM and SAMSUNG PHOENIX indicating its fast speed
Always evolving SSD
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe™ bandwidth for unbeatable computing. In capacities up to 2TB, with reliability of up to 1,200 TBW.
970 EVO Plus, which is faster than the 970 EVO, is Samsung Semiconductor’s SSD product powered by the latest V-NAND technology and firmware optimization.
* 1GB=1,000,000,000 bytes by IDEMA. A certain portion of capacity may be used for system file and maintenance use, so the actual capacity may differ from what is indicated on the product label.
Level up performance
The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53% faster than the 970 EVO. The latest V-NAND—which brings greater NAND performance and higher power efficiency—along with optimized firmware, a proven in-house controller, and intelligent turbowrite boost.
* Sequential and random write performance was measured with Intelligent TurboWrite technology being activated. Intelligent TurboWrite operates only within a specific data transfer size. Performance may vary depending on SSD’s firmware, system hardware & configuration and other factors. For detailed information, please contact your local service center.
* Test system configuration: Intel Core i7-7700K CPU @4.2GHz, DDR4 2400MHz 32GB, OS-Windows 10 Built 10240, Chipset–ASUS PRIME Z270-A.
* Up to 53 percent performance increase for sequential write speed for 250GB version.
Design flexibility
The next advancement in NVMe™ SSD. The 970 EVO Plus fits up to 2TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung’s innovative technology empowers you with the capacity to do more and accomplish more.
Design flexibility
Exceptional endurance
The new standard in sustainable performance. Get up to 1,200 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung’s quality.
Exceptional endurance
* TBW: Terabytes Written
* Warrantied TBW for 970 EVO Plus: 150 TBW for 250GB model, 300 TBW for 500GB model, 600 TBW for 1TB model, 1,200 TBW for 2TB model.
* 5-years or TBW, whichever comes first. For more information on the warranty, please find the enclosed warranty statement in the package.
Unparalleled reliability
Achieve a new level of drive confidence. Samsung’s advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.
Unparalleled reliability
Samsung Magician
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
Samsung Magician
Specifications
Form Factor
M.2
Capacity
250GB, 500GB, 1TB, 2TB
Sequential Read Speed
Up to 3,500 MB/s
Sequential Write Speed
Up to 3,300 MB/s
Model Code (Capacity)1)
MZ-V7S250 (250GB)
MZ-V7S500 (500GB)
MZ-V7S1T0 (1TB)
MZ-V7S2T0 (2TB)
General Feature
APPLICATION
Client PCs
FORM FACTOR2)
M.2 (2280)
INTERFACE
PCIe® Gen 3.0 x4, NVMe™ 1.3
DIMENSION (WxHxD)
Max. 80.15 x 22.15 x 2.38 (mm)
WEIGHT
Max 8.0 g
STORAGE MEMORY
Samsung V-NAND 3-bit MLC
CONTROLLER
Samsung In-house Controller
Special Feature
TRIM SUPPORT
Yes
S.M.A.R.T SUPPORT
Yes
GC (GARBAGE COLLECTION)
Auto Garbage Collection Algorithm
ENCRYPTION SUPPORT
AES 256-bit Encryption (Class 0), TCG/Opal, IEEE1667 (Encrypted drive)
WWN SUPPORT
Not Supported
DEVICE SLEEP MODE SUPPORT
Yes
Performance3) 4)
SEQUENTIAL READ
Up to 3,500 MB/s
SEQUENTIAL WRITE
250GB: Up to 2,300 MB/s
500GB: Up to 3,200 MB/s
1TB: Up to 3,300 MB/s
2TB: Up to 3,300 MB/s
RANDOM READ (4KB, QD32)
250GB: Up to 250,000 IOPS
500GB: Up to 480,000 IOPS
1TB: Up to 600,000 IOPS
2TB: Up to 620,000 IOPS
RANDOM WRITE (4KB, QD32)
250GB: Up to 550,000 IOPS
500GB: Up to 550,000 IOPS
1TB: Up to 550,000 IOPS
2TB: Up to 560,000 IOPS
RANDOM READ (4KB, QD1)
250GB: Up to 17,000 IOPS
500GB: Up to 19,000 IOPS
1TB: Up to 19,000 IOPS
2TB: Up to 19,000 IOPS
RANDOM WRITE (4KB, QD1)
250GB: Up to 60,000 IOPS
500GB: Up to 60,000 IOPS
1TB: Up to 60,000 IOPS
2TB: Up to 62,000 IOPS
Environment
AVERAGE POWER CONSUMPTION
(SYSTEM LEVEL)5)
250GB: Average 5.0 W
500GB: Average 5.8 W
1TB: Average 6.0 W
2TB: Average 6.0 W
POWER CONSUMPTION (IDLE)3)
Max. 30 mW
POWER CONSUMPTION (DEVICE SLEEP)
Max. 5 mW
ALLOWABLE VOLTAGE
3.3 V ± 5 % Allowable voltage
RELIABILITY (MTBF)
1.5 Million Hours Reliability
OPERATING TEMPERATURE
0 – 70 ℃
SHOCK
1,500 G & 0.5 ms (Half sine)
