Description

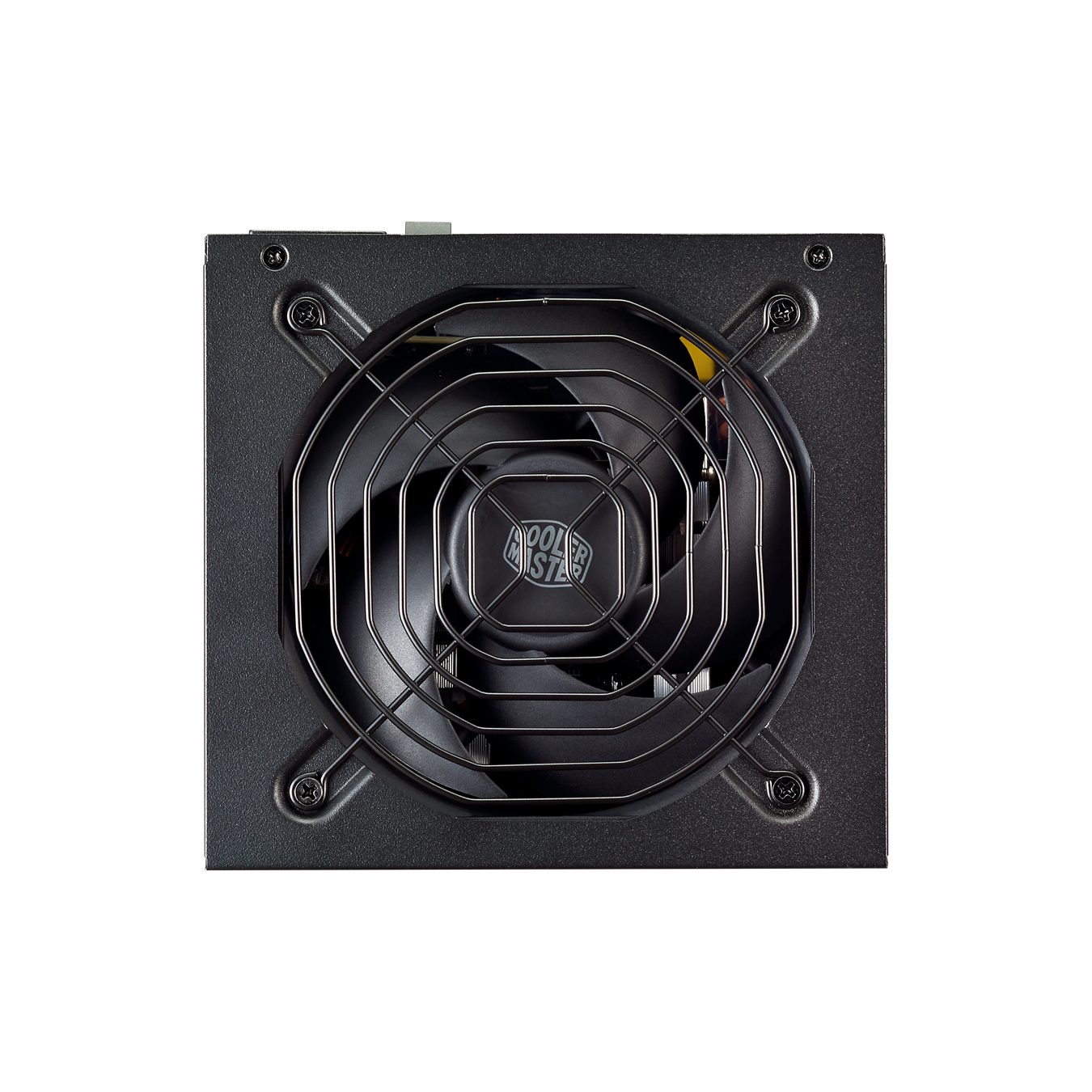

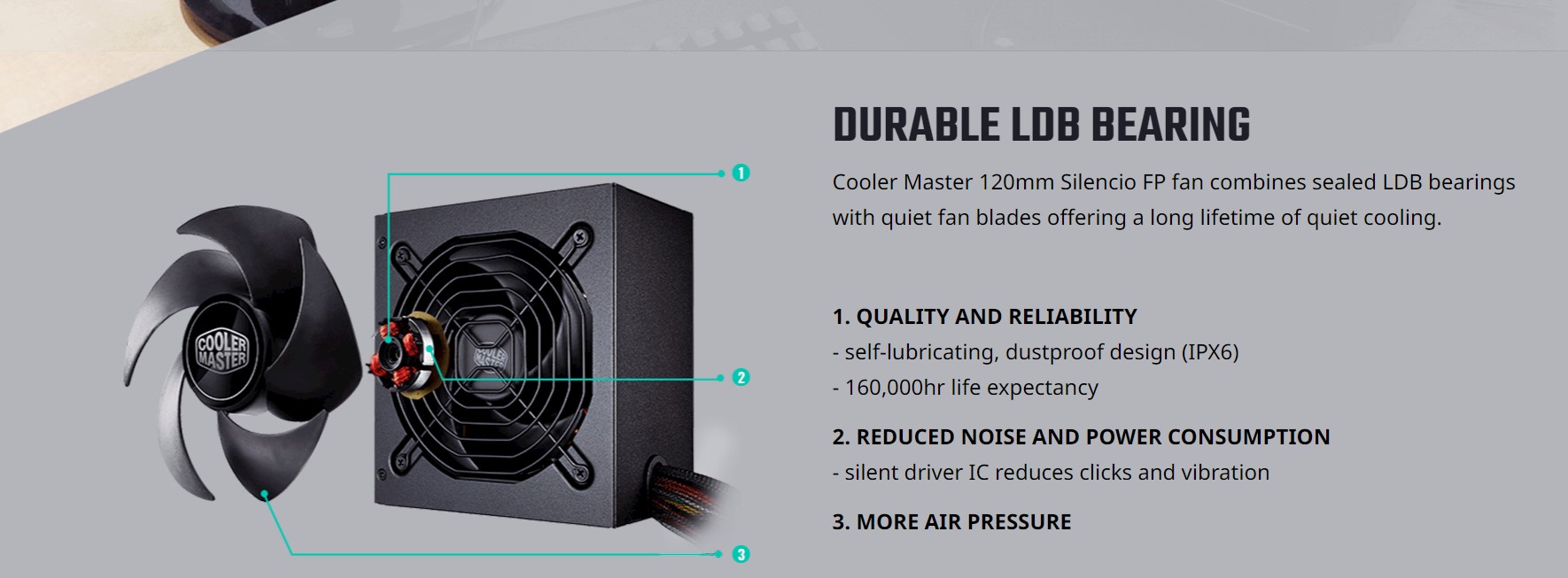

Cooler Master’s family of power options features a line of stable, high quality, 80 Plus Bronze power supplies. The MWE Bronze series is compact and available in outputs suitable for most systems. On top of safety regulations, the MWE Bronze includes Cooler Master’s 3 year warranty. Inside, the Silencio fan blades run with less turbulence while sealed LDB bearings guarantee a longer service life. High quality components keep up with daily power demands, while delivering consistent output even in 40°C surroundings cool and quietly.
| Product Name |

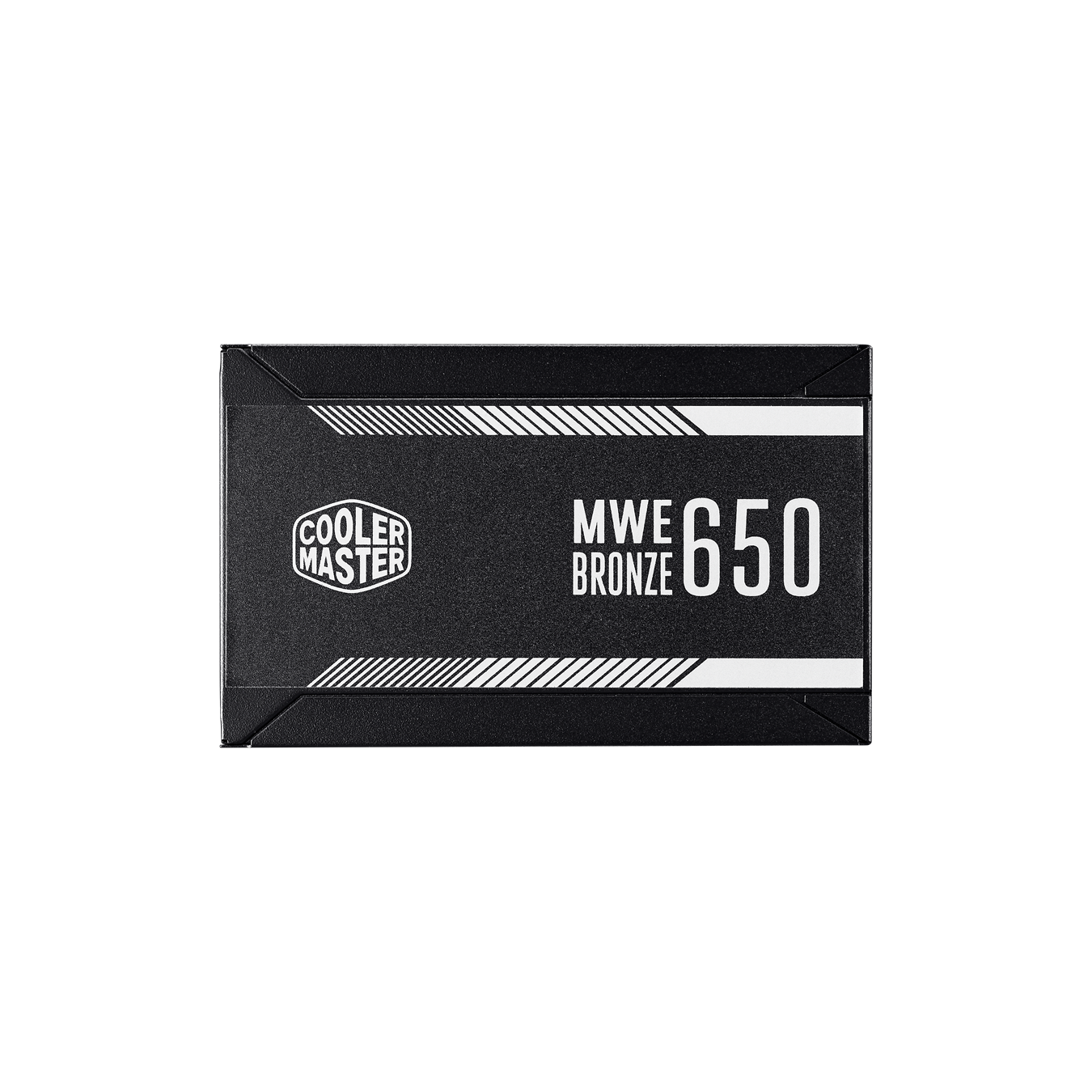

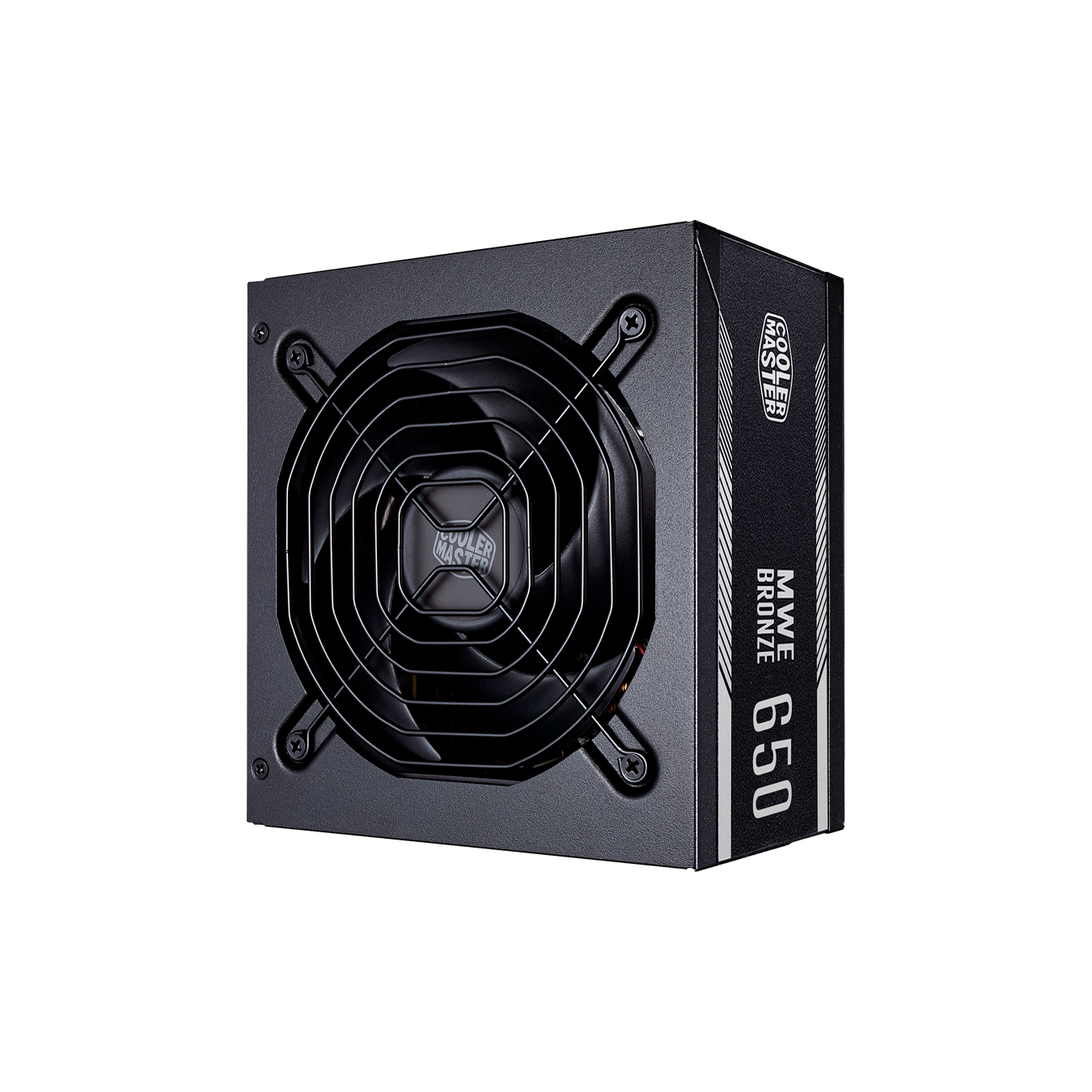

MWE Bronze 650 |
|
|
|
| ATX Version |
ATX 12V V2.31 |
|
|
|
| Operation Voltage |
100-240Vac |
|
|
|
|
|
|
|
| Dimensions (L x W x H) |
140 x 150 x 86 mm |
|
|
|
|
|
| Power Good Signal |
100 – 500 ms |
|
| Hold Up Time |
16ms at 80% Load |
|
| Efficiency |
85% @ Typical Load |
|
|
|
|
|
| Operating Temperature |
0-40°C |
|
| Protections |
OPP, OVP, UVP, OCP, OTP, SCP |
|
| Regulatory |
TUV-RH, CE, CCC, KC, EAC, RCM, cTUVus, FCC, BSMI |
|
|
|

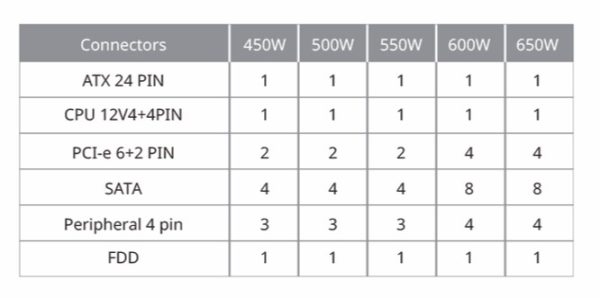

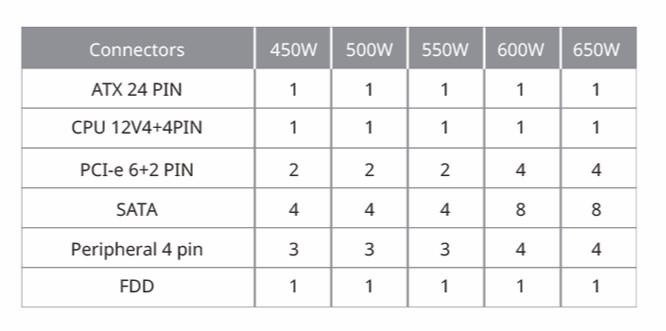

| CPU 12V 4+4 Pin Connectors |
1 |
|
|
|
| Peripheral 4 Pin Connectors |
4 |
|
| FDD Cable 4 Pin Connectors |
1 |
|
| PCI-e 6+2 Pin Connectors |
4 |
|
|
|
|
|
|
|
|
|
